Azden SMX-30 Stereo / Mono Switchable Video Microphone with:

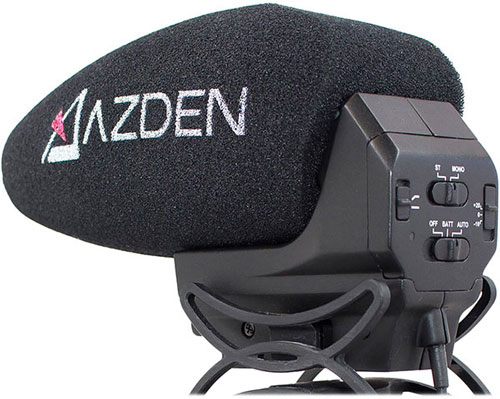

Azden SMX-30 Stereo / Mono Switchable Video Microphone
The ultimate video microphone with outstanding audio quality.
The Azden SMX-30 Stereo / Mono Switchable Video Microphone was engineered to be the ultimate video microphone with outstanding audio quality. It has an appealing design, ergonomic form factor, and all of the functional features one expects in a top-of-the-line, camera-mounted microphone.
The SMX-30 features both stereo and mono recording modes so you get two microphones in one. A +20dB gain booster alleviates noise produced by low-quality camera preamps, and -10dB pad helps in loud environments such as concerts and motorsport events.
The SMX-30 offfers low noise, high sensitivity and wide frequency response. It comes with a custom, detachable foam windscreen, and features an integrated shock-absorbing shoe-mount with 1/4"-20 thread. Output is provided via 3.5mm stereo mini plug. It operates on (2) AA batteries -- less expensive than the 9V battery in competitors' microphones -- and a battery indicator LED light gives you a low-power warning up to 1 hour.
Stereo and Mono:
Auto Power Setting:
Integrated Shock Absorbing Shoe Mount:
|Azden SMX-30 Stereo/Mono Switchable Video Microphone|
|– TECHNICAL SPECIFICATIONS –|
|Polar Pattern:||Mono: Super-Cardioid
Stereo: Cardioid (120°)
|Freq Resp:||40Hz - 20kHz|
|Sensitivity:||-36dB @ 1kHz|
|S/N Ratio:||82dB, 1kHz@1Pa|
|Max Input Level:||130dB SPL (1kHz@ 1% T.H.D.)|
|Max Output Level:||+6.2dBu|
|Output Impedance:||50 Ohms|
|Power Req:||2x AA batteries|
|Output Conn:||3.5mm Stereo mini plug|
|Power Switch:||Off, Battery, Auto|
|Gain Control:||-10dB, 0dB, +20dB|
|Low Cut Filters||120Hz, 3dB/octave|
|Dimensions:||1.9 x 4.2 x 5.7 in. (47 x 107 x 145mm)|
|Weight:||5.1 oz. (145g)|
