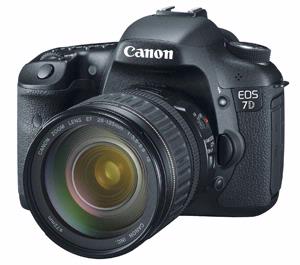

Canon EOS 7D Digital SLR Camera with EF 28-135mm IS USM Lens

With a host of brand new features designed to enhance every facet of the photographic process, from still images to video, the new EOS 7D represents a whole new class of camera. Made to be the tool of choice for serious photographers and semi-professionals, the EOS 7D features an all-new 18.0 Megapixel APS-C size CMOS sensor and Dual DIGIC 4 Image Processors, capturing tremendous images at up to ISO 12800 and speeds of up to 8 fps.

The EOS 7D has a new all cross-type 19-point AF system with improved AI Servo AF subject tracking and user-selectable AF area selection modes for sharp focus no matter the situation. The EOS 7D's Intelligent Viewfinder, an entirely newly-designed technology, provides 100% coverage and displays user-selected AF modes as well as a spot metering circle and on demand grid lines. New iFCL Metering with 63-zone dual-layer metering system uses both focus and color information to provide accurate exposure even in difficult lighting.

The EOS 7D also captures Full HD video at 30p (29.97 fps), 24p (23.976 fps) and 25p with an array of manual controls, including manual exposure during movie shooting and ISO speed selection. The EOS 7D features a magnesium alloy body that is dust- and weather-resistant and shutter durability of up to 150,000 cycles. Compatible with over 60 EF and EF-S lenses as well as with EOS System accessories, the creative opportunities -- not just with stills but also with video -- are beyond amazement.

Key Features:

• 18.0 Megapixel CMOS Sensor and Dual DIGIC 4 Image Processors for high image quality and speed
  The EOS 7D features a Canon-designed 18.0 Megapixel APS-C size CMOS sensor that captures such a high level of resolution it's easy to crop images for enlargement without concern of losing detail. A major factor in reducing noise, the CMOS sensor assures that images shot at highest sensitivity will be remarkably smooth. Dual DIGIC 4 Image Processors ensure that images are captured, processed and saved with remarkable speed. The EOS 7D's ability to capture and process data of images shot at 18.0 Megapixels at 8 fps, as well as Face Detection Live Mode, Full HD video recording, Auto Lighting Optimizer and Lens Peripheral optimization are all possible thanks to the Dual DIGIC 4 Image Processors.

• ISO 100-6400 (expandable to 12,800) for shooting from bright to dim light
  With a broad range of ISO settings, the EOS 7D enables shooting from dawn through dusk and ensures capture of the finest detail. With enhanced, low-noise high-sensitivity optimization, shooting in situations previously possible only with flash becomes as simple as point and shoot.

• 8.0 fps continuous shooting up to 126 Large/JPEGs with UDMA CF card and 15 RAW
  Capable of shooting up to 126 Large/JPEGs with a UDMA CF card and 15 RAW at 8 fps, the EOS 7D is a perfect camera for action. Canon's remarkable shutter, combined with speedy, sophisticated electronics, ensures instant response and performance. A rapidly-occurring scene can be captured moment by moment, second by second, so that even the briefest of opportunities are captured in perfect clarity.

• Advanced movie mode with manual exposure control and selectable frame rates: 1920 x 1080 (Full HD): 30p (29.97) / 24p (23.976) / 25p, 1280 x 720 (HD): 60p (59.94) / 50p, 640 x 480 (SD): 60p (59.94) / 50p
  Boasting the most advanced EOS movie capturing features to date, the EOS 7D does not just shoot video clips, it offers the enhanced image quality, smooth frame rates and adaptive exposure compensation necessary in a professional movie-making tool. By shooting video with a large sensor camera, it's simple to take advantage of the image characteristics intrinsic to SLR photography and not necessarily to video cameras. In addition to a number of different recording size and frame rate modes, the EOS 7D enables easy manual control of exposure, focus and Live View features and even allows for in-camera editing. The large CMOS sensor and compatibility with over 60 lenses provide a wealth of depth-of-field options. And it's all as easy as the press of a button — the EOS 7D has a dedicated Live View/Movie Recording lever with a start/stop button that gets the shooting started fast.

• Intelligent Viewfinder with 100% field of view, wide viewing angle of 29.4°, high magnification of 1.0, intelligent viewfinder with glass pentaprism and an overlaid LCD display in viewfinder supports various shooting styles
  The EOS 7D features a phenomenal redesigned viewfinder that not only offers 100 percent coverage, 1x magnification, a 29.4° angle of view and user-controlled dioptric adjustment, it also features a newly-designed transparent LCD display which enables a number of viewfinder displays to be overlaid at the touch of a button. Whereas with other cameras the representation of AF points and metering areas are static, with the EOS 7D, they can be displayed, adjusted and hidden, in camera, with ease. This means less distraction and more clarity to view the image in its entirety. Display options include: grid, spot metering, AF points display, hide all, zone AF, spot (single-point) AF, AF point expansion and Dual Axis Electronic Level display. The EOS 7D even features a brilliant new Dual Axis Electronic Level and tilt display that aids in achieving perfectly level shots, displaying both roll and pitch in 1° increments, either in the viewfinder or on the LCD.

• 19-point, all cross-type AF system equipped with dual diagonal cross-type sensors in center at f/2.8 and f/5.6 and AF area selection modes to match various shooting situations
  Canon packed its most advanced technologies into the EOS 7D's AF system. With 19 high-precision, cross-type AF sensors, any of which can be selected automatically or manually, the EOS 7D is equipped to handle even the trickiest of focus situations with ease. The high-speed microcomputers in the EOS 7D use advanced algorithms that help ensure the fastest, most accurate AF performance under the widest variety of conditions. In addition, Canon's Light Source detection AF automatically compensates the focus by taking into account artificial lighting sources and making appropriate adjustments and the EOS 7D's new Intelligent Macro focusing tracks the object or the camera's movement when shooting close-up, to ensure focus is never lost. AF modes can be customized to suit the situation, ensuring reliable focus, every time.

• iFCL Metering with 63 zone dual-layer metering sensor that utilizes AF and color information for optimizing exposure and image quality
  The EOS 7D features a new, 63 zone dual-layer sensor designed to complement the 19-point AF system. By taking into account the color and luminosity surrounding chosen AF points, this new system delivers an entirely new level of accuracy for better results even in difficult lighting situations. Since the metering sensor has a color measurement function, exposure errors and focus errors caused by different light sources are minimized; the EOS 7D gives stable exposure from shot to shot in situations where light changes, such as in a theater or concert hall. This makes the EOS 7D ideal for scenes with extreme difference in brightness such as brightly lit scenes or backlit scenes; the camera balances exposure of the main subject at the background, and exposures are not overly influenced by bright areas in the shot.

• Magnesium body with shutter durability up to 150,000 cycles and exclusive dust and weather resistance
  The EOS 7D is constructed of the highest quality materials, to exacting standards to ensure unfettered performance at all times. For example, the shutter can shoot at speeds up to 1/8000 sec. for 150,000 cycles; the chassis is built of lightweight and rigid magnesium, and the camera's seals are built to resist water and dust. This combination makes the EOS 7D ready for anything.

• HDMI (High Definition Multimedia Interface) output for displaying full high-resolution images on a High Definition TV
  The EOS 7D includes a HDMI (High Definition Multimedia Interface) output device that enables high definition display of your photographs on any HDTV with HDMI ports. It's remarkable to behold the details of your photographs in Full HD, and it's easy with the EOS 7D. Resolution is set automatically to match the TV to which you’ve connected.

• Compatible with over 60 Canon EF/EF-S lenses and most EOS System accessories
  The EOS 7D is compatible with all Canon lenses in the EF lineup, ranging from ultra-wide angle to super telephoto lenses. Canon lenses employ advanced optical expertise and micron-precision engineering to deliver unprecedented performance in all facets of the photographic process. Special optical technologies, such as Aspherical, ultra-low dispersion, or fluorite elements are featured in the universally acclaimed L-series lenses. And Canon's Optical Image Stabilizer technology is featured in select lenses to minimize the effect of camera shake. Through Canon lenses, photographers can truly maximize the quality and liberating performance of the EOS 7D.

Camera
Type:	Digital, AF/AE single-lens reflex camera with built-in flash
Recording Media:	CF Card Type I and II, UDMA-compliant CF cards, via external media (USB v.2.0 hard drive, via optional Wireless File Transmitter WFT-E5A)
Image Sensor Size:	22.3 x 14.9 mm (APS-C size)
Compatible Lenses:	Canon EF lenses including EF-S lenses (35mm-equivalent focal length is approx. 1.6x the lens focal length)
Lens Mount:	Canon EF mount
Image Sensor
Type:	High-sensitivity, high-resolution, large single-plate CMOS sensor
Pixels:	Effective pixels: Approx. 18.0 megapixels
Total Pixels:	Approx. 19.0 megapixels
Aspect Ratio:	3:2 (Horizontal: Vertical)
Color Filter System:	RGB primary color filters
Low-pass Filter:	Fixed position in front of the CMOS sensor
Dust Deletion Feature:	(1) Automatic Sensor Cleaning - Removes dust adhering to the low-pass filter. - Self-cleaning executed automatically (taking 2 sec.) when power is turned on or off. Manual execution also possible (taking 6 sec.) - Low-pass filter has a fluorine coating. (2) Dust Delete Data appended to the captured image - The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images. - The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots. (3) Manual cleaning of sensor
Recording System
Recording Format:	Design rule for Camera File System 2.0 and Exif 2.21
Image Type:	Still: JPEG, RAW (14-bit, Canon original), sRAW, mRAW, RAW+JPEG Video: MOV (Image data: H.264, Audio: Linear PCM)
File Size:	(1) Large: Approx. 17.90 Megapixels (5,184 x 3,456) (2) Medium: Approx. 8.00 Megapixels (3,456 x 2,304) (3) Small: Approx. 4.50 Megapixels (2,592 x 1,728) (4) RAW: Approx. 17.90 Megapixels (5,184 x 3,456) (5) M-RAW: Approx. 10.10 Megapixels (3,888 x 2,592) (6) S-RAW: Approx. 4.50 Megapixels (2,592 x 1,728) Exact file sizes depend on the subject, ISO speed, Picture Style, etc.
Recording Functions:	Images record directly to the CF card. With the WFT-E5A attached, image recording to the CF card and to the USB external media connected to the WFT-E5A will be possible as follows: (1) Standard, (2) Automatic switching of recording media, (3) Separate recording, (4) Recording of identical images, (5) Backup to external recording media
Backup Recording:	Enabled with WFT-E5A attached
File Numbering:	Consecutive numbering, auto reset, manual reset. Possible to create new folders and select folders in the CF card.
Color Space:	sRGB, Adobe RGB
Picture Style:	Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3
Image Processing
Type:	Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash, Custom, Color Temperature setting
Auto White Balance:	Auto white balance with the image sensor
Color Temperature Compensation:	White balance correction: ±9 mireds in 5 step increments White balance bracketing: ±3 mireds in full-step increments Blue/amber direction or magenta/green direction possible
Color Temperature Information Transmission:	Provided
Viewfinder
Type:	Eye-level pentaprism
Coverage:	Vertical/Horizontal approx. 100%
Magnification:	Approx. 1.0x (-1m-1 with 50mm lens at infinity)/29.4° angle of view
Eyepoint:	Approx. 22mm (from eyepiece lens center)
Built-in Dioptric Adjustment:	-3.0 to +1.0m-1 (diopter)
Focusing Screen:	Fixed
Mirror:	Quick-return half mirror (transmission: reflection ratio of 40:60) with EF600mm f/4L IS USM or shorter lenses)
Viewfinder Information:	AF information (AF points, focus confirmation light), Exposure information (Shutter speed, aperture, ISO speed, AE lock, exposure level, spot metering circle, exposure warning), Flash information (Flash-ready, flash exposure compensation, high-speed sync, FE lock, red-eye reduction light), Image information (Highlight tone priority, Monochrome shooting, maximum burst, white balance correction, CF card information), Composition information (Grid, electronic level), Battery check
Depth-of-Field Preview:	Enabled with depth-of-field preview button
Autofocus
Type:	TTL-CT-SIR AF-dedicated CMOS sensor
AF Points:	19-point all cross-type AF (f/2.8 at center: Dual Cross Sensor)
Metering Range:	EV -0.5-18 (at 73°F/23°C, ISO 100)
Focusing Modes:	(1) Autofocus - One-Shot AF - Predictive AI Servo AF * For automatic AF point selection, the AF point to start the AI Servo AF operation can be selected. * For automatic AF point selection, the active AF point can be displayed. - AI Focus AF (Switches between One-Shot AF and AI SERVO AF automatically) (2) Manual focus (MF)
AF Point Selection:	(1) Manual selection: Single point AF (2) Manual selection: Spot AF (3) Manual selection: AF point expansion (4) Manual selection: Zone AF (5) Automatic selection: 19 point AF
Selected AF Point Display:	Indicated by transmissive LCD display in the viewfinder and on the LCD panel
AF-assist Beam:	When an external EOS-dedicated Speedlite is attached to the camera, the AF-assist beam from the Speedlite will be emitted when necessary
Exposure Control
Metering Modes:	63-zone SPC TTL metering with selectable modes: - Evaluative metering (linkable to any AF point) - Partial metering (approx. 9.4% of viewfinder at center) - Spot metering (approx. 2.3% of viewfinder at center) - Center-weighted average metering
Metering Range:	EV 1-20 (at 73°F/23°C with EF50mm f/1.4 USM lens, ISO 100)
Exposure Control:	Program AE (Shiftable), Shutter-priority AE, Aperture-priority AE, Creative Auto, Full auto, Manual exposure, E-TTL II autoflash program AE
ISO Speed (Recommended Exposure Index):	Automatically set, ISO 100-6400 (in 1/3-stop or 1-stop increments) Basic Zone modes: ISO 100-3200 set automatically Extension settable (with C.Fn.I 3-1): ISO 12800 High Tone Priority settable: ISO 200-6400
Exposure Compensation:	Manual: ±5 stops in 1/3- or 1/2-stop increments (AEB ±3 stops) * Indicated up to ±3 stops on the LCD panel and in the viewfinder
AE Lock:	Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved Manual: By AE lock button
Shutter
Type:	Vertical-travel, mechanical, Electronically-controlled, focal-plane shutter
Shutter Speeds:	1/8000 to 1/60 sec., X-sync at 1/250 sec. 1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode)
Shutter Release:	Soft-touch electromagnetic release
Self-timer:	10-sec. or 2-sec. delay
Built-In Flash
Type:	Retractable, auto pop-up flash
Flash Metering:	E-TTL II autoflash
Guide Number:	12/39 (ISO 100, in meters/feet)
Recycling Time:	Approx. 3 sec.
Flash-ready Indicator:	Flash-ready icon lights in viewfinder
Flash Coverage:	15mm lens angle of view (equivalent to approx. 24mm in 135 format)
FE Lock:	Provided
Flash Exposure Compensation:	±3 stops in 1/3- or 1/2-stop increments
External Speedlite
Zooming to Match Focal Length:	Provided
Compatible Flash:	EX-series Speedlites
Flash Metering:	E-TTL II autoflash
Flash Exposure Compensation:	±3 stops in 1/3- or 1/2-stop increments
FE Lock:	Provided
External Flash Settings:	Flash function settings, Flash C.Fn settings
PC Terminal:	Provided
Drive System
Drive Modes:	Single, High-speed continuous, Low-speed continuous, and Self-timer (10 sec. self-timer/remote control, or 2-sec. self-timer/remote control)
Continuous Shooting Speed:	High-speed: Max. 8.0 shots/sec. Low-speed: Max. 3.0 shots/sec.
Maximum Burst:	JPEG (Large/Fine): approx. 94 (CF)/approx. 126 (UDMA CF) RAW: approx. 15/approx. 15 (UDMA CF) RAW+JPEG (Large/Fine): approx. 6 (CF/UDMA CF) Based on Canon's testing standards with a 2GB CF card, high-speed continuous shooting, ISO 100 and Standard Picture Style. Varies depending on the subject, CF card brand, image-recording quality, ISO speed, drive mode, Picture Style, etc.
Live View Functions
Shooting Modes:	Still photo shooting and video shooting
Focusing:	Quick mode (Phase-difference detection) Live mode/Face detection Live mode (Contrast detection) Face detection Live mode Manual focusing (5x/10x magnification possible)
Metering Modes:	Evaluative metering with the image sensor (still photos) Center-weighted average metering (video)
Metering Range:	EV 1-20 (at 73°F/23°C with EF 50mm f/1.4 USM lens, ISO 100)
Grid Display:	Provided (Two-type grid displays)
Exposure Simulation:	Provided
Silent Shooting:	Provided (Mode 1 and 2)
LCD Monitor
Type:	TFT color, liquid-crystal monitor
Monitor Size:	3.0 in.
Dots:	Approx. 920,000 dots (VGA)
Coverage:	Approx. 100% Viewing angle: 170°
Brightness Adjustment:	Auto: Brightness adjusted automatically by the light sensor, Manual: 7 levels provided
Interface Languages:	25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)
Image Playback
Display Format:	Single image, Single image + Image-recording quality/shooting information, histogram, 4- or 9-image index, magnified view (approx. 1.5x-10x), rotated image (auto/manual), image jump (by 10/100 images, index screen, by shooting date, by folder), slide show (all images/selected by date/folder)
Highlight Warning:	Provided (Overexposed highlights blink)
Image Protection and Erase
Protect:	Single images can be erase-protected or not
Erase:	Single image, check-marked images or all images in the CF card can be erased (except protected images)
Direct Printing
Compatible Printers:	PictBridge-compatible printers
Printable Images:	JPEG images compliant to Design rule for Camera File System (DPOF printing possible) and RAW/sRAW images captured with the EOS 7D
Easy Print Feature:	Provided
Image Format
DPOF: Digital Print Order Format:	Version 1.1 compatible
Direct Image Transfer:	JPEG and RAW images
Compatible Images:	*Only JPEG images can be transferred as wallpaper on the personal computer screen
Customization
Custom Functions:	Total 27
Camera User Settings:	Register under Mode Dial's C1, C2 and C3 positions
My Menu Registration:	Provided
Interface
USB Terminal:	For personal computer communication and direct printing (USB 2.0 Hi-Speed)
Video Out Terminal:	(1) Video OUT terminal: NTSC/PAL selectable (2) mini-HDMI OUT terminal
Extension System Terminal:	For connection to WFT-E5A
Power Source
Battery:	One Battery Pack LP-E6 AC power can be supplied via AC Adapter Kit ACK-E6 With Battery Grip BG-E7 attached.
Battery Check:	Auto
Power Saving:	Provided. Power turns off after 1, 2, 4, 8, 15 or 30 min.
Date/Time Battery:	One CR1616 lithium-ion battery
Start-up Time:	Approx. 0.1 sec. (based on CIPA testing standards)
Dimensions and Weight
Dimensions (WxHxD):	Approx. 5.8 x 4.4 x 2.9 in./148.2 x 110.7 x 73.5mm
Weight:	Approx. 28.9 oz./820g (body only)
Operating Environment
Working Temperature Range:	32-104°F/0-40°C
Working Humidity Range:	85% or less

---

Focal Length & Maximum Aperture:	28-135mm 1:3.5-5.6
Lens Construction:	16 elements in 12 groups
Diagonal Angle of View:	75º - 18º
Focus Adjustment:	Inner focusing system with USM
Closest Focusing Distance:	0.5m / 1.6 ft.
Zoom System:	Rotating type
Filter Size:	72mm
Diameter x Length:	3.1 x 3.8in (78.4 x 96.8mm)
Weight:	18.9 oz. (540g)

• Canon EOS 7D Digital SLR Camera with:
  • LP-E6 Battery Pack
  • Battery Charger
  • Wide Neck Strap
  • USB Interface Cable
  • Stereo AV Cable
  • Eyecup Eg
  • "Great Photography is Easy" Booklet
  • "Do More with Macro" Booklet
  • Software CD-ROM
  • Instruction Manuals
  • 1 Year Canon USA Warranty
• Canon EF 28-135mm f/3.5-5.6 IS USM Autofocus Lens with:
  • Front and Rear Lens Caps
  • Instruction Booklet
  • 1 Year Canon USA Warranty
