Sigma 120-300mm f/2.8 Sports
DG APO OS HSM Zoom Lens
(for Canon EOS)
Redefining what is possible.
The Sigma 120-300mm f/2.8 Sports DG APO OS HSM Zoom Lens is the first lens introduced into the Sports category for Sigma's Global Vision. Designed for full frame cameras, but compatible with APS-C sized sensors as well, the 120-300 f/2.8 has a large aperture and versatile focal length, ideal for a wide range of photography. Though placed in the Sports category, the 120-300 f/2.8 is also great for nature, automotive, wildlife, and everything in between.
Equipped with state of the art technology such as a Hyper Sonic Motor (HSM), an Optical Stabilizer (OS) and Inner Focusing and Zooming, the 120-300 f/2.8 ensures sharp and beautiful images. The HSM allows for a quiet, fast, and accurate autofocusing while the OS compensates for camera shake while shooting by hand. Two FLD glass elements, which have performance equal to fluorite, are incorporated with one SLD element to reduce color aberration at the highest degree. The Sports category offers not only a higher level of customization through the Sigma USB Dock (sold separately), but also has a dust and splash proof design.
Sports line lenses deliver high action-capture performance:
With their high-level optical performance and expressive power, Sigma's Sports lenses can capture fast-moving subjects, even at distance. This high-performance line also offers a variety of functions to aid the photographer in challenging conditions and scenarios. Besides sports photography, the lenses are also perfect for nature shots featuring birds, wild animals and other wildlife, and for capture of aircraft, trains, racing cars and more. Another major feature of Sports line lenses is their wide range of customization functions: using the software provided, all sorts of settings can be tailored to the personal preferences of the photographer.
Dust-proof and splash-proof construction:
For professional purposes, this lens offers excellent durability by incorporating dust-proof and splash-proof parts for joint parts, such as mount attachment, manual ring, zoom-ring, switches for customization and external switch panels. It prevents dust and dirt from entering the lens. Also, the usage of the zoom ring and focus ring is well positioned for shooting situations.
High image quality close to fixed focal length lens:

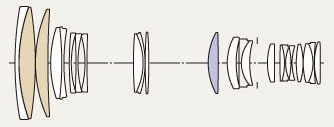

This lens incorporates 2 FLD ("F" Low Dispersion) glass elements, which have performance equal to fluorite, 1 SLD (Special Low Dispersion) glass element, and compensate for the color aberration at the utmost. The design also compensates for sagittal coma flare and minimizes the blurring of a point light source in peripheral areas. It offers very high image quality, close to fixed focal length lens.
Incorporation of focus limiter:
Excellent usability is achieved by incorporating inner focusing and zooming that requires no change in the length of the lens for focus and zoom. It is possible to use with a rounded filter, such as a Circular Polarizer, as the front part of the lens is fixed. Due to the focus limiter offering adjustable range of auto focusing, this lens can provide fast focus setting. The USB Dock enables users to change the range of the auto focusing at the discretion of users' creativity.
Ease of use:
Many parts of this lens have been designed for comfortable usage. For example, the design of the zoom ring is concerned with a texture when you hold it, the position of printed letters and the 4 control switches with integration-considered shape of the screws. Included accessories such as the removable lens hood and the newly designed tripod collar with strap ensure added ease of use.
Flare and ghosting conscious design:
In order to achieve high rendering on this flagship lens, flare and ghosting were thoroughly measured from an early stage to establish an optical design which is resistant to strong incident light such as backlight. The Super Multi-Layer Coating reduces flare and ghosting and provides sharp and high contrast images even in backlit conditions.
Excellent in handheld photography for telephoto shooting:
This lens incorporates the OS system which offers the use of shutter speeds approximately 4 stops slower than would otherwise be possible, ensuring the excellent use in handheld photography for telephoto shooting. The OS system has two modes -- OS mode 1 is suitable for general photography, and OS mode 2 is best for panning shots of subjects such as planes or racing cars. It is possible to adjust the OS using the optional USB Dock.
Quiet and Fast AF:
The HSM (Hyper Sonic Motor) ensures high speed and quiet AF as well as full-time manual focus override by rotation of the focus ring. With the enhanced AF algorithm, smoother AF is achieved. The full time manual, which offers further adjustment after focusing with AF mode, is possible. By using USB Dock, you can change and adjust the AF speed at your convenience.
Incorporating Rounded Diaphragm:
The 9-blade rounded diaphragm creates an attractive blur to the out-of-focus areas of the image.
Compatible with Sigma APO Tele-Converter (Optional):
The addition of Sigma's 1.4x EX DG APO or 2x EX DG APO TELE CONVERTER produces a 168-420mm f/4 AF telephoto zoom lens or a 240-600mm f/5.6 AF telephoto zoom lens respectively.
Brass made bayonet mount:
This lens incorporates a brass made bayonet mount which has both high accuracy and durability. A special treatment to reinforce its strength is applied to the surface giving it greater strength and making it highly resistant to long-term use.
Compatible with Sigma USB Dock (Optional):
Sigma has developed special software (SIGMA Optimization Pro) that can update the lens firmware and adjust parameters such as focus when the optional USB Dock is used. In addition, the lenses from the Sports line have customizable AF speed, focus limiter and OS function. The "Custom Mode Switch" is the device for further customization on the dedicated lenses. *USB Dock sold separately.
Evaluation with Sigma's own MTF measuring system "A1":
Sigma used to measure lens performance with MTF measuring system using conventional sensors. However, they have now developed a proprietary MTF (modulation transfer function) measuring system (A1) using 46-megapixel Foveon direct image sensors. Even previously undetectable high-frequency details are now within the scope of quality control inspections. This lens will be checked using this "A1" method before it is shipped.

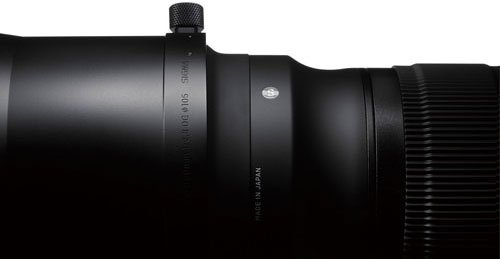

"Made in Japan":
All Sigma's manufacturing processes -- right down to molds and parts, with a few exceptions -- are carried out under a single integrated production system entirely in Japan.
