Sony Alpha E-Mount FE 28-135mm f/4.0 G OSS PZ Zoom Lens
A compact mid-range zoom that delivers outstanding
performance for full-frame format E-Mount cameras.
This compact full-frame Sony FE 28-135mm F4 OSS PZ has been created to satisfy professional moviemaking requirements, including the high resolution HD and 4K formats. Focus breathing and zoom image shift have been reduced to an absolute minimum, while aspherical elements and advanced multi-coating technology effectively suppress aberration. An SSM (Super Sonic wave Motor) drive system has been employed for precise, quiet zooming. Independent control rings for zoom, focus, and Iris (aperture) are provided for the first time in an alpha lens. Built-in Optical SteadyShot image stabilization adds to the extraordinary performance of this outstanding lens.
Precision G-series optical design for HD and 4K moviemaking
The FE 28-135mm G is a powered zoom lens that has been created to satisfy professional optical and operational requirements for both high-quality still and movie imagery, including 4K, when matched with a full-frame format camera such as the a7S or a Super 35 format camcorder such as the PXW-FS7.
When making movies you're frequently focusing while shooting, either with autofocus or manual focus. A lens that has not been designed with movies in mind might exhibit "breathing", or variations in the angle of view while focusing which can be a jarring distraction. The FE 28-135mm G features an optical design and control technology inherited from Sony's professional camcorders that ensure no breathing.
No focus shifting or axial displacement while zooming
Zooming is a fundamental moviemaking technique that is used for both practical framing changes as well as creative effect. "Smooth" is the key requirement for video. Any tracking irregularities such as jitter or axial image shifts are unacceptable. The FE 28-135mm G delivers exceptionally smooth tracking throughout the zoom range at any speed and eliminates any axial image shifting. Zooming is quiet as well as responsive thanks to advanced mechanical actuator design.
Independent Zoom, Focus and Iris rings for superior control
Independent control rings for zoom, focus, and iris (aperture) are provided for the first time in an alpha lens. The focus mode can be switched from auto to manual simply by sliding the focus ring forward so control is maintained at all times. Zoom speed can be precisely controlled over a wide range, with zoom rotation direction reversal capability. All three control rings have been engineered to provide ideal torque for comfortable, responsive operation.
Constant F4 Circular Aperture
Constant F4 max aperture maintains exposure and depth of field regardless of the focal range you chose to zoom to. When changing your aperture to defocus the background, the areas out of the focal plane appear blurred. This "bokeh" effect of the blurred background can be enhanced with circular aperture blades used in this lens. Conventional aperture blades have flat sides creating unappealing polygonal shaped defocussed points of light. alpha lenses overcome this problem through a unique design that keeps the aperture almost perfectly circular from its wide-open setting to when it is closed by 2 stops. Smoother, more natural defocusing can be obtained as a result

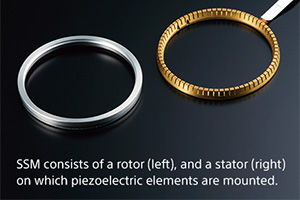

Super Sonic wave motor drive for zoom with internal zoom structure
This power zoom lens offer enhanced control and expressive potential for moviemaking, with smooth, consistent zooming that is difficult to achieve manually. Details like smooth acceleration and deceleration are important too, and of course tracking is excellent throughout. The FE 28-135mm G features the world's first SSM (Super Sonic wave Motor) drive in a lens designed for moviemaking to achieve quiet zoom and extra-smooth iris control.

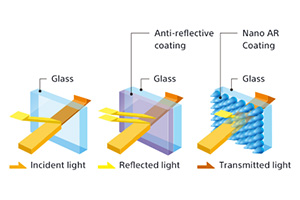

Nano AR Coating
Effectively suppress reflections that can cause flare and ghosting with Sony's original Nano AR Coating technology. This precisely defined regular nano-structure allows accurate light transmission, contributing to high-quality images, even more so than lenses with coatings that use an irregular nano-structure. The reflection suppression characteristic of the Nano AR Coating is superior to conventional anti-reflective coatings, providing a notable improvement in clarity, contrast, and overall image quality.
|SSM (SUPER SONIC WAVE MOTOR)
||NANO AR COATING
Quiet Iris and auto focus
Noise while adjusting iris or focus can be an unwanted distraction on your movie soundtrack. Sony's advanced iris control and linear AF motor drive system achieve quiet focusing that is also extremely responsive. Part of the reason that focus control is so quiet is that original Sony linear motors are contactless, with no gears or mechanical coupling to generate noise.
Dust and moisture resistant design for maximum
The dust and moisture resistance design makes this lens appropriate for heavy-duty outdoor use, especially when combined with a camera that employs weather resistant measures such as the Sony's a7 series of cameras.
Lens-based Optical SteadyShot image stabilization
Gyro sensors built into the lens detect even the slightest movement, and the stabilization lens is precisely shifted to counteract any image blur that might occur. The use of precision, quiet linear motors and technology inherited from high-end Sony professional camcorders results in exceptionally quiet, effective image stabilization that contributes to high-quality movies as well as stills.
The middle AF group of the optical system is smaller, lighter, and easier to move rapidly to achieve focus,. So the overall length of the lens does not change and the lens is able to achieve shorter minimum focusing distance. The filter thread at the front of the lens does not rotate, which is convenient if you're using a polarizing filter.
ED (Extra-low Dispersion) glass / Super ED glass
As focal lengths get longer, lenses built with conventional optical glass have difficulties with chromatic aberration, and as a result images suffer from lower contrast, lower color quality, and lower resolution. ED glass dramatically reduces chromatic aberration at telephoto ranges, and provides superior contrast across the entire image, even at large aperture settings. Super ED glass provides enhanced compensation for chromatic aberration.
Aspherical lens elements
Aspherical lens design dramatically reduces spherical aberration while also reducing lens size and weight. Spherical aberration is a slight misalignment of the light rays projected on the image plane. This is caused by differences in refraction at different points on conventional spherical lenses which degrade image quality in large-aperture lenses. Specially shaped "aspherical" elements near the diaphragm restore alignment of light rays at the image plane, maintaining high sharpness and contrast even at maximum aperture and can also be used at other points in the optical path to reduce distortion. Well-designed aspherical elements can reduce the total number of elements required in the lens, thus reducing overall size and weight.
