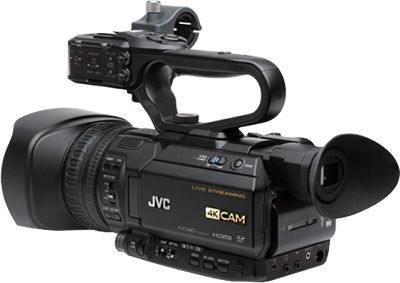

JVC GY-HM250U Ultra 4K HD 4KCAM Professional Camcorder & Top Handle Audio Unit
4K Ultra HD for the Pro On-the-Go.
Fully equipped for any shooting scenario, the JVC GY-HM250U Ultra 4K HD 4KCAM is JVC's next generation camcorder! Whether you're shooting 4K Ultra HD, 4:2:2 Full HD, or streaming to the web, this camera does it all. Its integrated 12x optical zoom lens and 1/2.3-inch 4K CMOS sensor. Deliver stunning 4K Ultra HD recordings directly to one or two SDHC/SDXC memory cards simultaneously for instant backup or extended recording time with dual memory card slots. This camera is totally professional, complete with dual XLR audio inputs, manual control rings, user assignable buttons, a wide variety of connectors, such as HD-SDI (3G) and HDMI outputs. In addition, the HM250U is equipped with JVC's dual codec Advanced Streaming Technology.
If you need to "go live" right now, you can have the GY-HM250 stream live HD footage over the internet via optional Wi-Fi or 4G LTE modem to networks such as YouTube, Facebook Live,
cloud services, or any other destination while recording to the SDHC/SDXC memory card. You can even add real-time broadcast information overlays for recorded video or streamed video without an external CG or production switcher. The GY-HM250 is perfect for streaming broadcast news, weddings, school, family and church events, or literally any occasion you want to share live!
The top handle unit incorporates two 3-pin XLR inputs that allow you to attach balanced microphones or wireless audio inputs. Each input supports line, microphone, and mic +48 selections with independent gain control for accepting input from different audio sources.
1/2.3-inch 12.4M CMOS Sensor:
The GY-HM250 was built to deliver stunning, life-like 4K Ultra HD (3840x2160) video. JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane.
12x Optical Zoom and Seamless 24x Dynamic Zoom:
The ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm). When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping from a 4K image sensor to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its compact form factor. Dynamic Zoom combines Optical Zoom plus Pixel Mapping -- focusing on a smaller image area for lossless
|HD Mode for 24X Dynamic Zoom
|ORIGINAL IMAGE NO ZOOM
||12X OPTICAL ZOOM
||24X DYNAMIC ZOMM IN HD MODE
|Dynamic Zoom combines Optical Zoom plus Pixel Mapping--focusing on a smaller image are for lossless 24X Zoom
Full HD 4:2:2 Recording at 50Mbps:
The ability to record H.264 4:2:2 24-60p at 50Mbps makes the GY-HM250 an ideal camera for broadcasting and production houses alike. The color accuracy of 4:2:2 enables the GY-HM180 to deliver exceptional color resolution even when images are in sharp contrast to the background. This is particularly useful when strong colors are in contrast to bright backgrounds, or in green screen usage.
4K/Ultra HD (UHD) Recording at 150Mbps and Live Output:
Working with 4K has never been easier. Insert an SDHC or SDXC (UHS-I Speed class 3) memory card and record hours of 4K/UHD (3840x2160) 4:2:2 material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K/UHD monitor with a single HDMI cable, and view the camera's live 4K signal. You can also play back recorded files directly from the camera. The GY-HM250 also downconverts UHD signals to standard HD for output through the built-in SDI or HDMI connectors.
More Manageable 70Mbps 4K Recording Mode:
4K 70Mbps recording mode is also available to record 4K footage on economical Class 10 SDHC/SDXC memory cards. The lower bit rate creates smaller, more manageable files.
120fps (59.94Hz)/100fps (50Hz) High-Speed Recording for Slow Motion Playback:
Also available is high-speed recording (1920x1080 resolution only), at up to 120fps (59.94Hz)/ 100fps (50Hz) for smooth slow motion playback (up to 1/5 slow at 24p mode). It helps create artistic effects and lets you watch replays to examine sporting skills.
HD-SDI (3G) and HDMI Output:
The GY-HM250 comes with a wide variety of connectors to meet the needs of professional applications, including HD-SDI (3G) and HDMI. Secured digital connection is assured between external devices such as a recorder or switcher. Simultaneous output from both SDI and HDMI is also possible.
Web-friendly (Proxy) File Formats:
The GY-HM250 features JVC's latest IP communications engine giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or lower resolutions, depending on available bandwidth.
JVC's Advanced Streaming Technology (AST) includes Zixi powered Forward Error Correction with ARQ, and SMPTE 2022 forward error correction delivering high quality streams even under challenging conditions. RTMP protocol makes it easier than ever to deliver your live streams to content delivery networks such as Facebook, YouTube and IBM Cloud. Just press one button and you're streaming to the world!

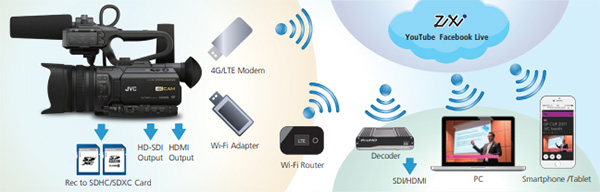

Advanced IP Network Communication and HD Streaming:
The GY-HM250 features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your GY-HM250 to an optional Wi-Fi or 4G/LTE modem and share your program with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud service.
Compatible Network Adapters:
- Wi-Fi: Hawking Technology HD65U
- Ethernet: Plugable USB2-E100; D-Link DUB-E100
- 4G LTE: Verizon UML290; Verizon UML295; AT&T 313U

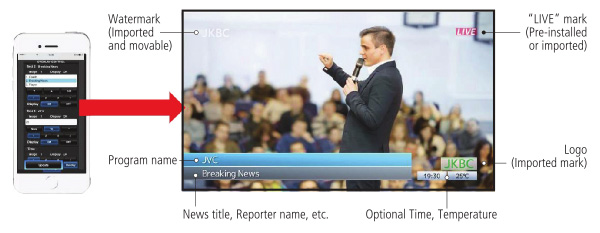

Real-Time Broadcast Info Overlay:
Designed for enhanced single-camera production, the GY-HM250 offers lower-third and full-screen titling solutions for recorded or streamed HD video output without an external CG or production switcher. Lower-third graphic overlays are generated and controlled using a browser-equipped device such as a tablet or smartphone. JVC's software utility lets customers upload logos or icons to be displayed in the lower-third of the recorded video. The camera also comes with several pre-installed color schemes and the ability to add your own text bar designs also exists.
Note: This feature is not available in 4K mode.
Full-Screen Graphics Overlay and Slide Show:
Stores up to 50 full-screen custom graphics (PNG or JPG) in the camera to overlay on live streaming and HD recording. Graphics can be advanced manually or presented as a looping slide show with timing of 1 - 99 seconds per slide.
Note: This feature is not available in 4K mode.
FTP Uploading for Footage Transfer:
Video clips recorded on an SDHC/SDXC card can be transferred from the GY-HM250 via FTP server. Clips can be trimmed right in the camera, which is useful for selecting only vital scenes before uploading to an FTP server. What's more, if an upload is interrupted by a weak connection, the FTP Resume function is smart enough to restart from where it left off. This will help to save time for uploading.
Advanced Streaming with Zixi:
For advanced live streaming solutions, JVC has teamed with Zixi. The GY-HM250 features the Zixi engine, installed directly into the camera, to provide high-quality delivery over 4G/LTE or standard Internet connection. The powerful Zixi engine applies forward error correction (FEC) and adaptive bit rate control with the "high reliable mode" to correct packet loss by over 40% , delivering a robust, reliable HD stream.
Note: Requires Zixi licensed decoder or server. Quality of live streaming depends on network conditions including packet loss.
Zero Config Capability:
Provides automatic JVC camcorders detection within the same LAN group, and simple setting up connection with the Streamstar switcher system.
IP Remote Control and Viewing:
When the camera is IP connected, vital camera operations can be remotely controlled via wireless or wired LAN from smart devices, computers, or optional RM-LP100. Remote control functions include lens and camera settings as well as registering zoom presets and IP connection settings.
S.L.I.M. Studio Camera System design concept:
The SLIM system design is based on the optional RM-LP100U Remote Camera Control's latest firmware which enables painting and shading of our IP-capable camcorders, as well as simultaneously providing full control of our KY-PZ100 PTZ cameras! No other system offering incorporates a line-up of studio camcorder configurations providing the depth and diversity to meet the needs of professional applications from Education and House of Worship to Corporate, Industrial and Broadcast.
- Simple Design - addresses multiple levels of video operation and control.
- Low Cost - a fraction versus traditional systems with full functionality.
- IP Control - uses flexible and ubiquitous IP wired or wireless infrastructure
- Multiple Camera Control - controls up to 100 cameras with a single RM-LP100U (tally control up to 5).

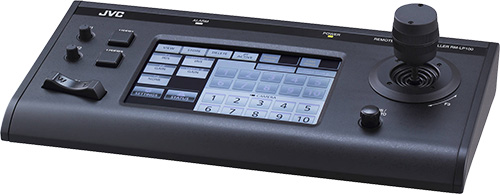

|RM-LP100U REMOTE CAMERA CONTROL (SOLD SEPARATELY)
Manual Control Rings and User Assignable Buttons:
Take total control of the scene with dual large rings for zoom and focus, and IRIS dial for smooth shooting. What's more, functions you want can be allocated to 9 buttons and 4 cursor levers, so settings can be changed smoothly during recording, making professional operation really easy.
Fully Customizable Settings and Full Auto Simplicity:
For more advanced visual expressions, detailed image settings such as gamma and color shade can be customized. All of the customized settings are stored in the camera unit or SD card, and can be called up whenever necessary.
Built-in ND Filters:
To address extremely bright conditions, ND filters have been provided internally. None, 1/4, and 1/16 are selectable for instant adjustment of light intake.
Telephoto / Wide-Angle Macro Shooting:
The GY-HM250 features the Tele/Wide Macro mode to provide better focus on close objects. A clear focus is maintained even at a distance of approx. 60cm from the subject at tele end.
|OFF AT MACRO MENU
||TELE+WIDE AT MACRO MENU
Highlight Display Priority Mode:
Particularly effective for areas of high brightness, this mode records footage with more natural tones and richer colors. Perfect for scenes with bright sky and reflective surfaces.
PRIORITY MODE OFF
PRIORITY MODE ON
Dual SDHC/SDXC Card Slots:
Dual SDHC/SDXC card slots make the GY-HM250 a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.
- Series (relay) recording mode: Continuous recording card by card.
- Dual (simultaneous) recording mode: Recording to 2 cards at same format for backup or multi-purpose.

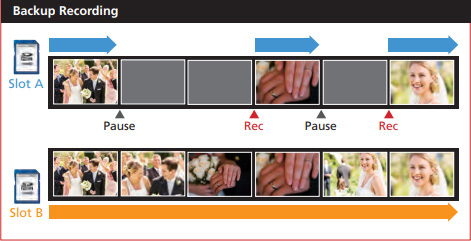

- Backup recording mode: While the Rec trigger is used to REC and STOP recording on one card, the other card can act as a continuous backup that overrides the pause function.
Top Handle Audio Unit:
The top handle attaches directly to the camcorder, which provides power for the top handle. Electronic contacts on the top handle audio unit and the camcorder obviate the need for a connecting cable, which makes using the top handle simple and reliable to set up and use. The top handle also incorporates a microphone clamp and accessory shoe.
Two 3-pin XLR inputs allow you to attach balanced microphones or wireless audio inputs. Each input supports line, microphone, and mic +48 selections with independent gain control for accepting input from different audio sources.
- 1/2.3-inch CMOS image sensor w/12.4M pixels
- 12x F1.2-3.5 zoom lens (35mm equivalent 29.6-355mm)
- Seamless and lossless 24x Dynamic Zoom with pixel mapping in HD mode
- Real-Time Broadcast Info Overlay, Full-Screen Graphics Overlay and Slide Show (HD mode only) - New
- Lower-third and full-screen titling solutions for recorded or streamed video - New
- Zero Config con?guration capability - New
- Tele-macro mode provides better focus on close objects - New
- 4:2:2 recording at 4K/30p and 4K/24p - New
- Full HD (24-60p) recording at 50Mbps
- 4K Ultra HD recording (70 Mbps, 24/30p) to SDXC/SDHC (Class 10) cards
- 4K Ultra HD recording (150 Mbps, 24/30p) to dual SDXC (UHS-I Speed class 3) card
- 120fps (59.94Hz) / 100fps (50Hz) for smooth slow motion playback
- 3.5-inch color LCD display (920K pixel) with smart focus assist function
- 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
- 2 position ND filter (1/4, 1/16)
- Highlight display priority
- Histogram display
- Live 4K UHD output via HDMI connector
- 3G-SDI output for HD HDMI output for UHD/HD
- 2-channel XLR audio inputs with phantom power
- Built-in stereo microphone
- Advanced JVC streaming engine compatible with RTMP, Zixi and Wowza Streaming Engines*
- IP Network Remote Control, Remote Viewing, Metadata editing, FTP clips*
- Includes SSL-JVC50 7.2V battery and AC adapter
*Requires appropriate network connection and adapter
